1. A 20 m long uniform copper wire held horizontally is allowed to fall under the gravity (g = 10m / s^2) through a uniform horizontal magnetic field of 0.5 gauss perpendicular to the length of the wire. The induced EMF across the wire when it travels a vertical distance of 200 m is __________mV.

2. A wire of uniform resistance λΩ/ m is bent into a circle of radius r and another piece of wire with length 2r is connected between points A and B (AOB) as shown in figure. The equivalent resistance between points A and B is ________ Ω.

3. In a screw gauge, the zero of the circular scale lies 3 divisions above the horizontal pitch line when their metallic studs are brought in contact. Using this instrument thickness of a sheet is measured. If pitch scale reading is 1 mm and the circular scale reading is 51 then the correct thickness of the sheet is _______mm. [Assume least count is 0.01 mm]

4. Four persons measure the length of a rod as 20.00 cm,19.75 cm, 17.01 cm and 18.25 cm. The relative error in the measurement of average length of the rod is

5.The moment of inertia of a square loop made of four uniform solid cylinders, each having radius R and length L(R < L) about an axis passing through the mid points of opposite sides, is (Take the mass of the entire loop as M)

6. A thin prism with angle 5º of refractive index 1.72 is combined with another prism of refractive index 1.9 to produce dispersion without deviation. The angle of second prism is _________ .

7. The de Broglie wavelength of an oxygen molecule at 27°C is x × 10 ^ - 12 m. The value of x is (take Planck's constant = 6.63 × 10^-34 J.s, Boltzmann constant = 1.38 × 10 ^ - 23 ×J/K , mass of oxygen molecule =5.31×10^-26 kg)

8. Two point charges 2q and q are placed at vertex A and centre of face CDEF of the cube as shown in figure. The electric flux passing through the cube is

9. In hydrogen atom spectrum, (R→ Rydberg's constant)

(A) the maximum wavelength of the radiation of Lyman series is 4/(3R)

(B) the Balmer series lies in the visible region of the spectrum.

(C) the minimum wavelength of the radiation of Paschen series is 9/R

(D) the minimum wavelength of Lyman series is 5/(4R)

Choose the correct answer from the options given below

10. The following diagram shows a zener diode as a voltage regulator. The zener diode is rated at V_z = 5V and the desired current in load is 5 mA. The unregulated voltage source can supply upto 25 V. Considering the zener diode can withstand four times of the load current, the value of resistor R_s (shown in circuit) should be ________ Ω.

11. Given below are two statements: one is labelled as Assertion (A) and the other is labelled as Reason (R). Consider a ferromagnetic material:

Assertion (A): The individual atoms in a ferromagnetic material possess a magnetic dipole moment and interact with one another in such a way that they spontaneously align themselves forming domains.

Reason (R): At high enough temperature, the domain structure of ferromagnetic material disintegrates. Thus, magnetization will disappear at high enough temperature known as Curie temperature.

In the light of the above statements, choose the correct answer from the options given below.

12. An object is projected with kinetic energy K from a point A at an angle 60° with the horizontal. The ratio of the difference in kinetic energies at points B and C to that at point A (see figure), in the absence of air friction is

13. A small bob A of mass m is attached to a massless rigid rod of length 1 m pivoted at point P and kept at an angle of 60° with vertical as shown in figure. At distance of 1 m below point P, an identical bob B is kept at rest on a smooth horizontal surface that extends to a circular track of radius R as shown in figure. If bob B just manages to complete the circular path of radius R upto a point Q after being hit elastically by bob A, then radius R is m.

14. Two small balls with masses m and 2m are attached to both ends of a rigid rod of length d and negligible mass. If angular momentum of this system is L about an axis (A) passing through its centre of mass and perpendicular to the rod then angular velocity of the system about A is

15. A simple pendulum of string length 30 cm perform 20 oscillations in 10 s. The length of the string required for the pendulum to perform 40 oscillations in the same time duration is ______cm. [Assume that the mass of the pendulum remains same.]

16. In a perfectly inelastic collision, two spheres made of the same material with masses 15 kg and 25 kg, moving in opposite directions with speeds of 10 m/s and 30 m/s, respectively, strike each other and stick together. The rise in temperature (in °C), if all the heat produced during the collision is retained by these spheres, is (Specific heat of sphere material 31cal/kg °C and 1 cal = 4.2 J)

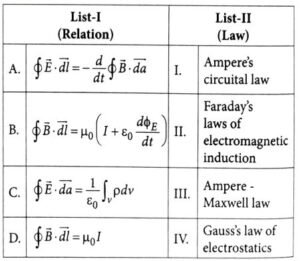

17. Match the List I and List II.

Choose the correct answer from the option given below.

18. The strain-stress plot for materials A, B, C and D is shown in the figure. Which material has the largest Young's modulus?

19. Two blocks with masses 100 g and 200 g are attached to the ends of springs A and B as shown in figure. The energy stored in A is E. The energy stored in B, when spring constants K_A, K_B of A and B, respectively satisfy the relation 4k_A = 3k_B, is

20. Consider light travelling from a medium A to medium B separated by a plane interface. If the light undergoes total internal reflection during its travel from medium A to B and the speed of light in media A and B are 2.4 × 10 ^ 8 m/s and 2.7 × 10 ^ 8 m/s respectively, then the value of critical angle is

21. In two separate Young's double-slit experimental set-ups and two monochromatic light sources of different wavelengths are used to get fringes of equal width. The ratios of the slits separations and that of the wavelengths of light used are 2: 1 and 1: 2 respectively. The corresponding ratio of the distances between the slits and the respective screens (D_1 / D_2) is _________.

22. The equation of the electric field of an electromagnetic wave propagating through free space is given by, E = √377 sin(6.27 × 10 ^ 3 t - 2.09 × 10 ^ - 5  x)N / C

The average power of the electromagnetic wave is (1/α)W / (m ^ 2) The value of α is ________.

(Take √μ_0/ε_0 = 377 in SI units)

23. The space between the plates of a parallel plate capacitor of capacitance C (without any dielectric) is now filled with three dielectric slabs of dielectric constants K_1 = 2 K_2 = 3 and K_3 = 5 (as shown in figure). If new capacitance is n/3C then the value of n is _________ .

24. Using a variable frequency a.c. voltage source the maximum current measured in the given LCR circuit is 50 mA for V = 5sin(100t) The values of L and R are shown in the figure. The capacitance of the capacitor (C) used is ______μF.

25. A simple pendulum made of mass 10 g and a metallic wire of length 10 cm is suspended vertically in a uniform magnetic field of 2T. The magnetic field direction is perpendicular to the plane of oscillations of the pendulum. If the pendulum is released from an angle of 60° with vertical, then maximum induced EMF between the point of suspension and point of oscillation is ________mV. (Take g = 10m /s ^ 2)

Chemistry

SECTION-A (Multiple Choice Questions)

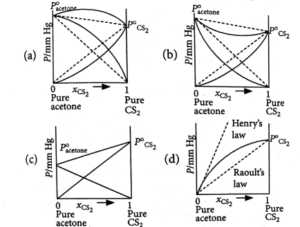

1. Which one of the following graphs accurately represents the plot of partial pressure of CS₂ vs its mole fraction in a mixture of acetone and CS₂ at constant temperature?

2. x is the product which is obtained from propane nitrile and stannous chloride in the presence of hydrochloric acid followed by hydrolysis. y is the product which is obtained from the but-2-ene by the ozonolysis followed by hydrolysis. From the following, which product is not obtained when one mole of x and one mole of y react with each other in the presence of alkali followed by heating?

3.

4.  Consider the following compounds.

Arrange these compounds in the increasing order of reactivity with nitrating mixture.

5. Given, (A): n = 5, m_Ɩ =-1

(B) n =3, Ɩ = 2, m_Ɩ=-1, m_s = +1/2

The maximum number of electron(s) in an atom that can have the quantum numbers as given in (A) and (B) respectively are

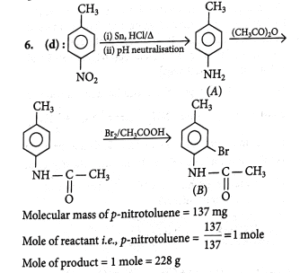

6.  Consider the following sequence of reactions.

Assuming that the reaction proceeds to completion, then 137 mg of 4-nitrotoluene will produce ________ mg of B. (Given molar mass in g mol^-1: H = 1, C = 12, N = 14, O = 16, Br = 80)

7. A cup of water at 5 °C (system) is placed in a microwave oven and the oven is turned on for one minute during which the water begins to boil. Which of the following option is true?

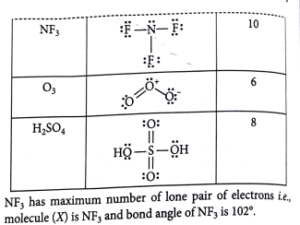

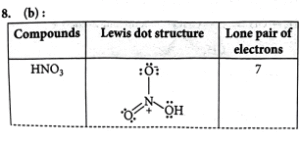

8. Identify the molecule (X) with maximum number of lone pairs of electrons (obtained using Lewis dot structure) among HNO_3, H_2SO_4, NF_3 and O_3. Choose the correct bond angle made by the central atom of the molecule (X).

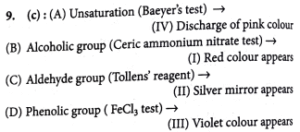

9. Match list -I with list -II

Choose the correct answer from the options given below.

10. The correct statements from the following are:

A. Ionic radii of trivalent cations of group 13 elements decreases down the group.

B. Electronegativity of group 13 elements decreases down the group.

C. Among the group 13 elements, boron has highest first ionisation enthalpy.

D. The trichloride and triiodide of group 13 elements are covalent in nature.

Choose the correct answer from the options given below.

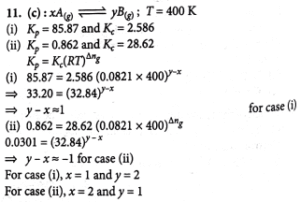

11. Consider the general reaction given below at 400 K .

xA_(g) ⇌ yB_(g)

The values of K_p and K_c are studied under the same condition of temperature but variation in x and y.

(i) K_p = 85.87 and K_c = 2.586 appropriate units

(ii) K_p = 0.862 and K_c = 28.62 appropriate units

The values of x and y in (i) and (ii) respectively are

(i)                                (ii)

(a) 3,1                        3, 1

(b) 1,3                        2, 1

(c) 1,2                        2, 1

(d) 4,1                         4, 1

12. From the given following (A to D) cyclic structures, those which will not react with Tollens' reagent are

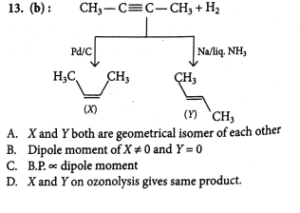

13. But-2-yne and hydrogen (one mole each) are separately treated with (i) Pd/C and (ii) Na/liq. NH_3 to give the products X and Y respectively

Identify the incorrect statements.

A. X and Y are stereoisomers.

B. Dipole moment of X is zero.

C. Boiling point of X is higher than Y.

D. X and Y react with O_3/Zn + H_₂O to give different products.

Choose the correct answer from the options given below.

14. Given below are two statements:

Statement I: Sublimation is used for the separation and purification of compounds with low melting point. Statement II: The boiling point of a liquid increases as the external pressure is reduced.

In the light of the above statements, choose the correct answer from the options given below:

15. Given below are two statements:

Statement I: [CoBr_4]^2- ion will absorb light of lower energy than [CoCl_4]^2- ion.

Statement II: In [Col_4]^2- ion, the energy separation between the two set of d-orbitals is more than [CoCl_4]^2- ion.

In the light of the above statements, choose the correct answer from the options given below:

16.

The correct sequence of reagents for the above conversion of X to Y is

17. In the given electrochemical cell, Ag_(s) | AgCl_(s) | FeCl_2(aq), FeCl_3(aq) | Pt_(s) at 298 K, the cell potential (E_cell) will increase when

A. Concentration of Fe^2+ is increased.

B. Concentration of Fe^3+ is decreased.

C. Concentration of Fe^2+ is decreased.

D. Concentration of Fe^3+ is increased.

E. Concentration of Cl^- is increased.

Choose the correct answer from the options given below.

18. The correct trend in the first ionization enthalpies of the elements in the 3rd period of periodic table is

19. The statements that are incorrect about the nickel(II) complex of dimethylglyoxime are:

A. It is red in colour.

B. It has a high solubility in water at pH = 9

C. The Ni ion has two unpaired d-electrons.

D. The N-Ni-N bond angle is almost close to 90°.

E. The complex contains four five-membered metallacycles (metal containing rings).

Choose the correct answer from the options given below:

20. Which of the following statements regarding the energy of the stationary state is true in the following one electron systems?

SECTION-B (NUMERICAL VALUE TYPE QUESTIONS)

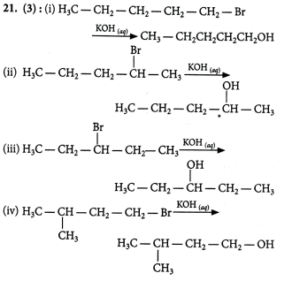

21. Consider all the structural isomers with molecular formula C_5H_11Br are separately treated with KOH_(aq) to give respective substitution products, without any rearrangement. The number of products which can exhibit optical isomerism from these is _________.

22. The crystal field splitting energy of [Co(oxalate)_3]^³- complex is n times that of the [Cr(oxalate)_3]^³- complex. Here n is ___________ (Assume Δ_o >> P)

23. For the thermal decomposition of reactant AB_(g), the following plot is constructed.

The half life of the reaction is x min. x = _______ min. (Nearest integer)

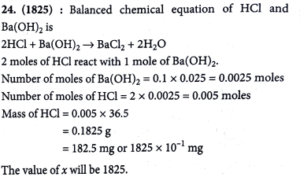

24. x mg of   pure HCl was used to make an aqueous solution, 25.0 mL of 0.1 M Ba(OH)_2 solution is used when the HCl solution was titrated against it. The numerical value of x is  __________ × 10^-1. (Nearest integer) [Given: Molar mass of HCl and Ba(OH)_2 are 36.5 and 171.0 g mol^-1 respectively.]

25. For the following gas phase equilibrium reaction at constant temperature, NH_3(g) ⇌ 1/2N_2(g)+3/2H_2(g) if the total pressure is √3 atm and the pressure equilibrium constant (K_p) is 9 atm, then the degree of dissociation is given as (x × 10^-2)^-1/2. The value of x is _____________(Nearest integer)

Mathematics Section -A (Multiple Choice Questions)

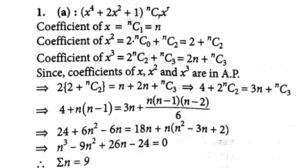

1.  The sum of all possible values of n ∈ N, so that the coefficients of x, x² and x in the expansion of (1+x^2)²(1+x)^n, are in arithmetic progression is

2.

3.

4. Let a^→ = -i^+1j^+2k^,b^→=i^-j^-3k^, c^→=a^→× b^→ and d^→= c^→× a^→ . Then (a^→- b^→).d^→ is equal to

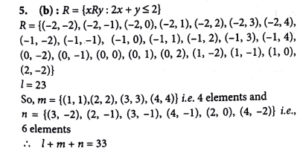

5.  Let A = (-2, -1, 0, 1, 2, 3, 4). Let R be a relation on A defined by xRy if and only if 2x + y ≤ 2. Let I be the number of elements in R. Let m and n be the minimum number of elements required to be added in R to make it reflexive and symmetric relations respectively. Then l + m + n is equal to

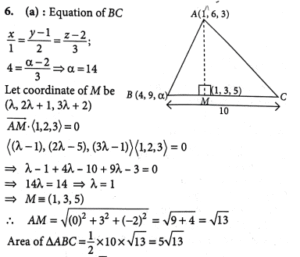

6. The vertices B and C of a triangle ABC lie on the line x / 1 = 1-y/-2 = z-2/3. The coordinates of A and B are 1 = -2 3 (1, 6, 3) and (4, 9, a) respectively and C is at a distance of 10 units from B. The area (in sq. units) of ΔABC is

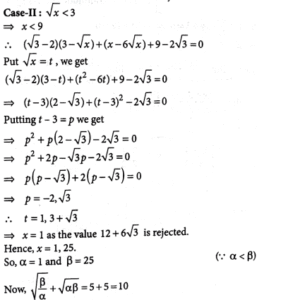

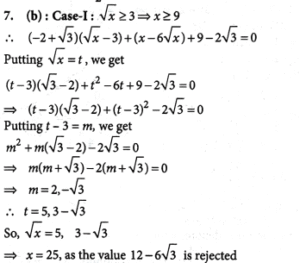

7. If α and β (α <β) are the roots of the equation (-2+√3)(|√x-3|)+(x-6√x)+(9-2√3)=0,x  > 20, then √β/α +√αβ is equal to

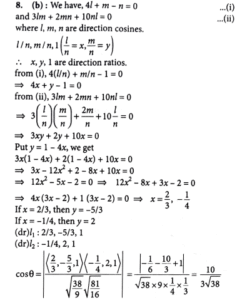

8. Let the direction cosines of two lines satisfy the equations: 4l + m - n = 0 and 2mn + 10nl + 3lm = 0. Then the cosine of the acute angle between these lines is

10.

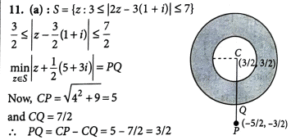

11. Let S = {z: 3≤ |2z-3(1+i)|≤ 7} be a set of complex numbers. Then Z ∈ S Min |z+1/2(5+3i)| is equal to

12. Let the line y - x = 1 intersect the ellipse x²/2+y^2/1 =1 at the points A and B. Then the angle made by the line segment AB at the center of the ellipse is

13. Let y = y(x) be the solution of the differential equation x^4dy + (4x^3y + 2sinx)dx=0, x>0, y(π/2)=0.  Then π^4y (π/3) is equal to

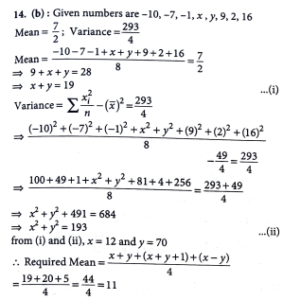

14. Let the mean and variance of 8 numbers -10, -7, -1, x, y, 9, 2, 16 be  7/2 and 293/ 4 respectively. Then the mean of 4 numbers x, y, x + y + 1, |x - y| is

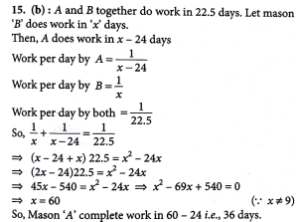

15. A building construction work can be completed by two masons A and B together in 22.5 days. Mason A alone can complete the construction work in 24 days less than mason B alone. Then mason A alone will complete the construction work in

16. A rectangle is formed by the lines x = 0, y = 0, x = 3 and y = 4. Let the line L be perpendicular to 3x + y + 6 = 0 and divide the area of the rectangle into two equal parts. Then the distance of the point (1/2,-5) line L is equal to

17.

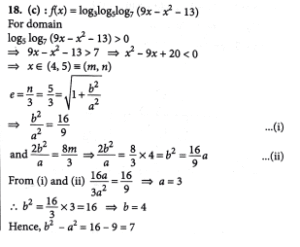

18. Let the domain of the function f(x) = log_3log_5log_7 (9x - x²-13) be the interval (m, n). Let the hyperbola x^2/a^2 - y^2/b² = 1 have eccentricity n/3 and the length of the lactus rectum is 8m/3. Then b^2-a^2 is equal to

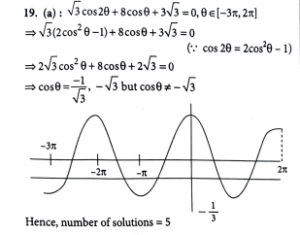

19. Number of solutions of √3cos2θ+8cosθ+3√3=0, θ ∈ [-3π, 2π] is

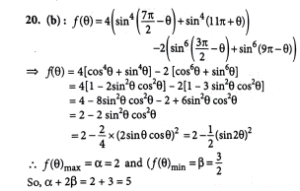

20. Let α and β respectively be the maximum and the minimum values of the function

Then α + 2 β is equal to

SECTION-B (NUMERICAL VALUE TYPE QUESTIONS)

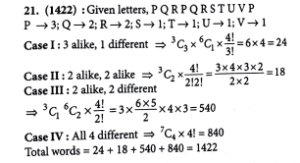

21. The number of 4-letter words, with or without meaning, which can be formed using the letters PQRPQRSTUVP, is_________

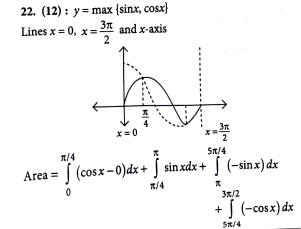

22. Let the area of the region bounded by the curve y = max{sinx, cosx}, lines x = 0, x = 3 π/2 and the x-axis be A. Then, A + A² is equal to _______.

23. From the first 100 natural numbers, two numbers first a and then b are selected randomly without replacement. If the probability that a - b ≥ 10 is m/n, gcd(m,n)=1, then m + n is equal to _____.

24.

25. Let |A| = 6, where A is a 3 x 3matrix. If |adj(3adj(A².adj)(2A)))| = 2^m.3^n, m, n, ∈ N, then m + n is equal to

_____.
